VX Series 2/2 Way Solenoid Valve
Features
| Working Medium | Air,Water,Steam |
| Motion Pattern | Direct Drive Type |
| Type | Normal Close Type |
| Working-pressure MPa | 0~1.0MPa |

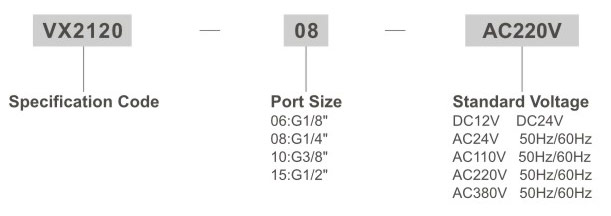

Ordering Code
Specification
| Model | VX2120-06 | VX2120-08 | VX2120-10 | VX2120-15 |
| Working Medium | Air,Water,Steam | |||
| Motion Pattern | Direct Drive Type | |||
| Type | Normal Close Type | |||
| Working-pressure MPa | 0~1.0MPa | |||
| Aperture of Flow Rate(mm) | 3 | 13 | ||
| Joint Pipe Bore | 1/8″ | 1/4″ | 3/8″ | 1/2″ |
| Operating Temperature ℃ | -5~150℃ | -5~80℃ | ||
| Material of Oil Seal | VITON | NBR | ||

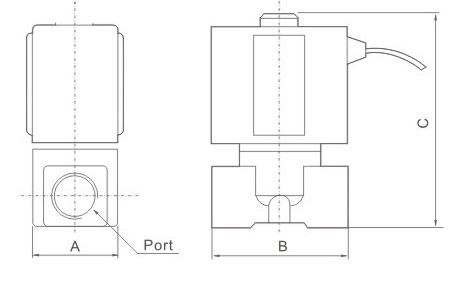

Overall Dimensions
| Model | Bore | A | B | C |
| VX2120-06 | G1/8″ | 26 | 40 | 66 |
| VX2120-08 | G1/4″ | 26 | 40 | 66 |
| VX2120-10 | G3/8″ | 40 | 68 | 80 |
| VX2120-15 | G1/2″ | 47 | 68 | 88 |
