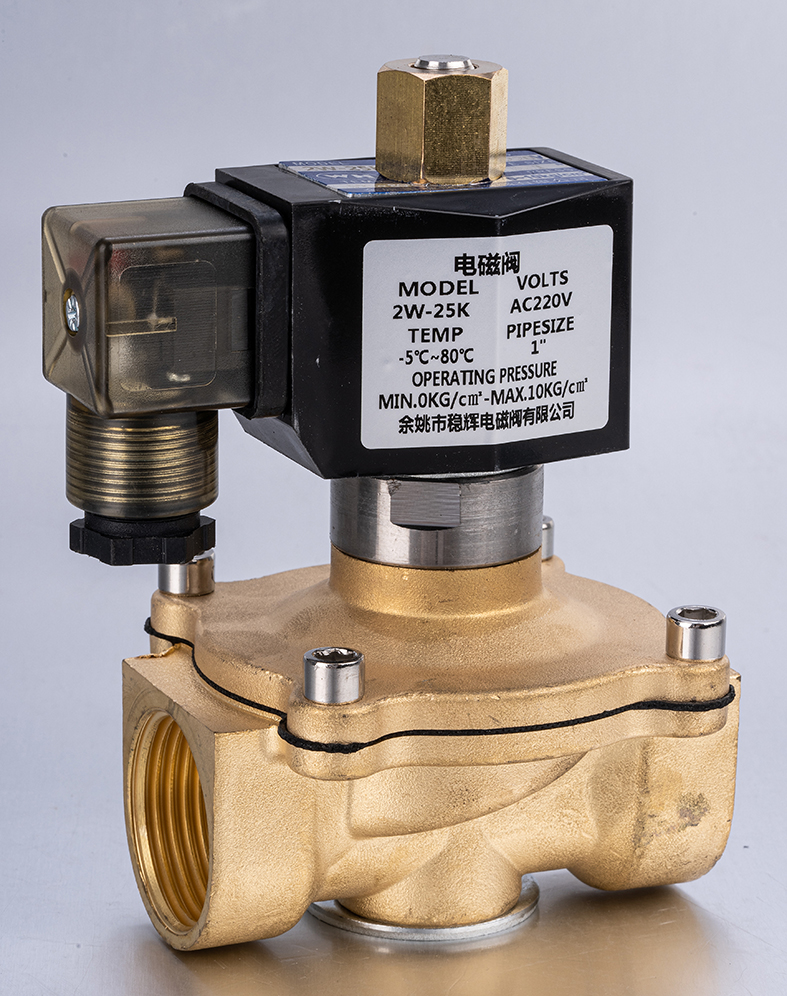

2W Series Direct Acting Battery Valve

Characteristic 1.The direct-acting type diaphragm structure without pressure to open. 2.Using the plate diaphragm structure opening and close with reliably,then extent product life. 3.Turn off when powered on,turn on when powered off.

Order code

2W–  06     –  B– 口   □-   CT–    AC220V–   G

Model 2W Two-way 2L Steam 5404 High voltage 0927 High voltage SLP High voltage 2W-XSD Manual Bore 06、08、10、15、20、 25、32、40、50 Body  Material B-Stainless steel No-Brass X-Zinc alloy

Sealing Element No-NBR V-FPM Valve Body Form No-Normally closed K-On normally

Voltage AC220VDC24V AC110V AC380V AC24V DC12V Coil Model Brass-Brass coil 410-Plastic sealed coil CT-Explosion proof coil

Thread G NPT Flange

Structual specification

Model specification	2W-025-06	2W-025-08	2W-040-10	2W-160-10	2W-160-15	2W-200-20	2W-250-25	2W-320-32	2W-350-35	2W-400-40	2W-500-50
Pipe Size	1/8″	1/4″	3/8″	3/8″	1/2″	3/4″	1″	1¼”	1¼”	1½”	2″
Flow path	2.5MM	2.5MM	4MM	16MM	16MM	20MM	25MM	32MM	35MM	40MM	50MM
CV valve	0.23	0.23	0.6	4.8	4.8	7.6	12	24	24	29	48
Using fluid	Air,water,oil,neutral gas liquid
Seryice yoltage	AC380V  AC220V  AC110V  AC24V  DC24V  DC12V(Allow)±10%
Action mode	Direct acting				Type		Normally open type
Body material	Brass				Viscosity		Fluid viscosity:Below 20CST
Working pressure	(Water,air):0~10kgf/cm²(Oil):0~7kgf/cm²
Materialof seal	Standard:below 80℃fluid temperature use NBR /Below 120℃use EPDM/Below 150℃use VITON

Overall dimension



Copper

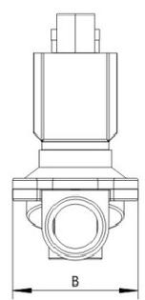

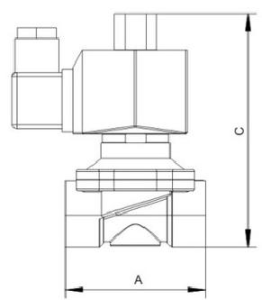

Model	A	B	C	Bore
2W-025-06K	21	40	79	1/8″
2W-025-08K	21	40	79	1/4″
2W-040-10K	21	50	96	3/8″
2W-160-15K	55	62	115	1/2″
2W-200-20K	55	64	120	3/4″
2W-250-25K	65	84	120	1″
2W-320-32K	70	97	142	1¼”
2W-400-40K	75	103	155	1½”
2W-500-50K	82	130	172	2″

Stainless steel

Model	A	B	C	Bore
2W-025-08BK	42	40	77	1/4″
2W-040-10BK	54	50	117	3/8″
2W-160-15BK	55	64	117	1/2″
2W-200-20BK	55	69	125	3/4″
2W-250-25BK	77	93	130	1″
2W-320-32BK	77	98	137	1¼”
2W-400-40BK	82	104	165	1½”
2W-500-50BK	94	135	175	2″
