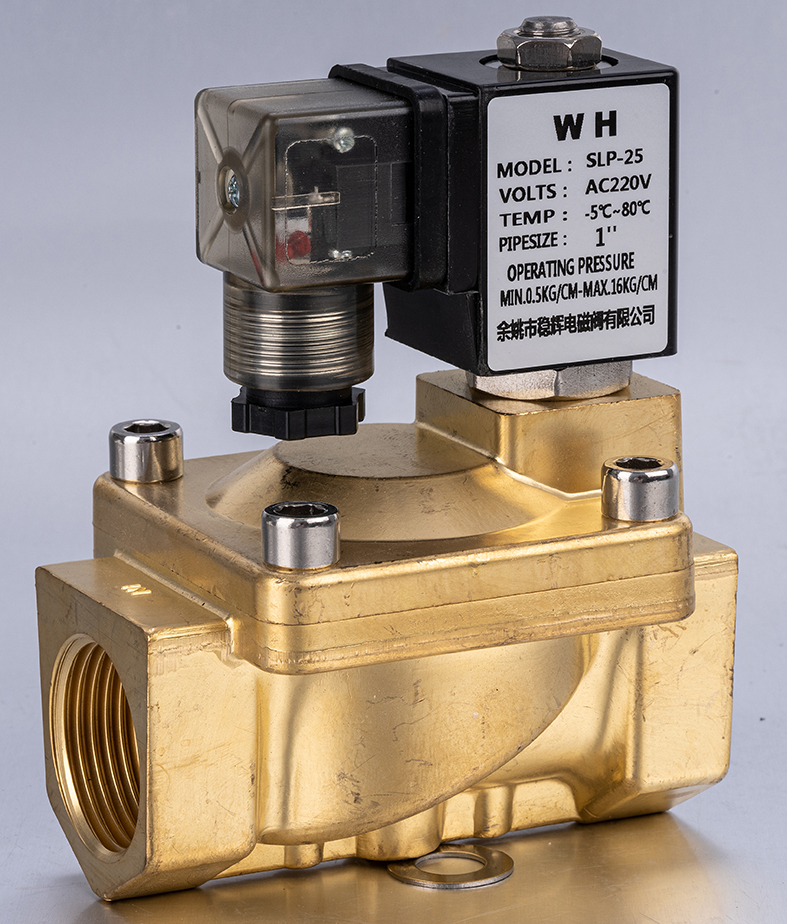

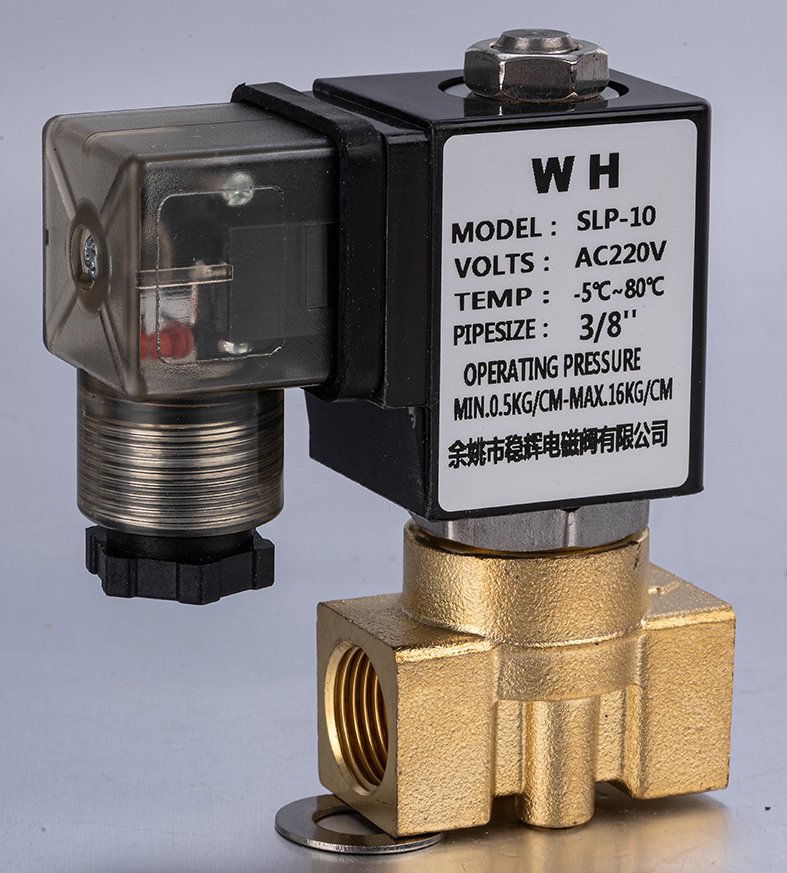

Slp Pilot High Voltage Battery Valve
Characteristic
The upper limit of fluid pressure range is high,with a pilot diaphragm structureand lowpower consumption;
The desian life of the protective diaphragmstructure is extended by two times.
Application Scope
it is widely used in various fileds such as petrochemical,power,machinery,medical.scientific research,filling,buildings,industrial kiins, pipeline media automation control,etc
Principle
Normally closed:When the coilisenergized,the pilot valve core closes,the pilot hole opens.the pressure on the valve is relieved,the piston is pushed by the pressure of the lower chamber medium,and the solenoid valve opens;When the coilispowered of,the piltvalve core is reset by the spring, thepilot hole is closed,and the valve upper chamberis pressurized by the piston throtte holeand the thrustof the resetspring,and the valve is closed.
Technical Parameter
| Product name | Pilot-operated type |
| Product model | SLP Pilot high voltage battery valve |
| Body material | Brass/Stainless Steel |
| Product Form | SLP Series |
| Action type | Normally closed type(power on,power off) |
| Using fluid | Water,air,oil |
| Working Temperature | -5-100℃ |
| Pressure | 0.02-1.6Mpa |
| Voltage | AC220V DC24V AC380V etc |

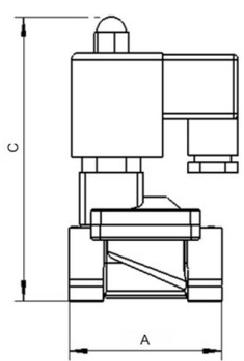

Dimensions
Copper
| Model | A | B | C |
| SLP-15 | 67 | 49 | 108 |
| SLP-20 | 75 | 57 | 113 |
| SLP-25 | 96 | 70 | 126 |
| SLP-32 | 131 | 95 | 145 |
| SLP-40 | 131 | 95 | 145 |
| SLP-50 | 164 | 120 | 157 |
Stainless steel
| Model | A | B | c |
| SLP-15B | 68 | 49 | 108 |
| SLP-20B | 79 | 55 | 115 |
| SLP-25B | 96 | 70 | 123 |
| SLP-32B | 110 | 80 | 130 |
| SLP-40B | 129 | 87 | 177 |
| SLP-50B | 160 | 112 | 165 |
